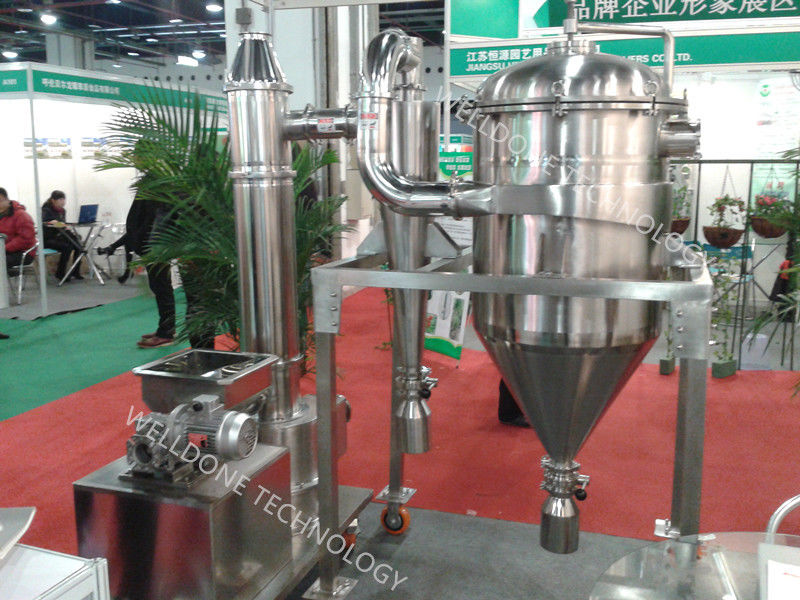

Automatic Functioning GMP standard Spin Flash Dryer



Description of Automatic Functioning GMP Standard Spin Flash Dryer

XSG Rotary Flash Dryer is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type high drying efficiency and low energy consumption equipment that researched and developed by our company.

Hot air enters the stirring part of drying chamber from the bottom, material is stirred by stirring device and then the hot air exerts strong shearing, blowing, floating and rotating effect to material. Therefore material is crushed by centrifugal, shearing, impacting and friction effect. It strengthens the heat exchanging process. In the bottom of drying chamber, big and damp granules are crushed by stirring device, the particles with low moisture content and small size are lifted by rotary air stream, and be further dried. Gas and solid two phases rotary flow, inertia of solid phase is bigger than gas phase, the relative velocity between gas phase and solid phase is high, heat exchanging efficiency is strengthened, so the drying intensity of this machine is high.

Features of Automatic Functioning GMP Standard Spin Flash Dryer

Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon.

There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.

Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.

There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.

There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.

In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.

Application of Automatic Functioning GMP Standard Spin Flash Dryer

Ceramic industry: Kaolin, bentonite, clay, etc.

Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.

Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.

Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.











Technical Parameters of Automatic Functioning GMP Standard Spin Flash Dryer

After Sell Service

Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
---- A presentation report of manufacturing situation will be offered every 15days
---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
---- Photo of wooden case will be offered, wooden case with standard shipping marks.
---- Photo of freight loading will be offered.
---- A record of detailed delivery list will be offered
---- A record of detailed freight loading list will be offered
---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell

Packing & Delivery
