DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

Πιστοποίηση
Κίνα Changzhou Welldone Machinery Technology Co.,Ltd Πιστοποιήσεις
Κίνα Changzhou Welldone Machinery Technology Co.,Ltd Πιστοποιήσεις
Αναθεωρήσεις πελατών
Ο στεγνωτήρας και granulator λειτουργούν καλό, ΚΑΛΟΨΗΜΕΝΟΣ!!

—— YUN εκτάριο Byung

Όλοι οι στεγνωτήρας ψεκασμού, ξηρότερος, κωνικός κενός ξηρότερος και διπλός αναμίκτης βιδών δίσκων είναι κατάλληλοι, είμαι ευχαριστημένος από τους, θα επιδιώξω μερικούς άλλους εξοπλισμούς από σας σύντομα

—— Manoel

Και η ποιότητα και η υπηρεσία είναι μεγάλες, είστε αξιόπιστος φίλος. :)

—— George Clemente

Είμαι Online Chat Now

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)
DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

Μεγάλες Εικόνας :  DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: WELLDONE
Πιστοποίηση: CE/ISO9901:2008/ISO10004
Αριθμό μοντέλου: DWF
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1SET
Τιμή: 8000USD/Set-350000USD/Set
Συσκευασία λεπτομέρειες: Ξύλινη συσκευασία περίπτωσης + πλαστική ταινία
Χρόνος παράδοσης: 30-60 εργάσιμες ημέρες
Όροι πληρωμής: Η MoneyGram L/C, D/A, D/P, T/T, Western Union,
Δυνατότητα προσφοράς: 10sets/μήνα

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design)

περιγραφή
Τάση: 110V/220V/380V/415V/480V Hertz: 50Hz/60Hz
Δύναμη εγκατάστασης: 7.5KW-125KW Υλικό: CS/SUS304/SUS316L
Πόρος θέρμανσης: Ατμός/ηλεκτρικός/αέριο/diesel Βάρος: 500KGS-40000KGS
Θερμοκρασία ξήρανσης: 50-250℃ Αποδοτικότητα ξήρανσης: 75%
Τρόπος να ελέγξει: Κουμπί/οθόνη αφής/μακρινός Ειδικό σχέδιο: Συγκολλητικό προϊόν τοίχων/ξήρανση χαμηλής θερμοκρασίας
Επισημαίνω:

fruit dryer machine

,

cabinet tray dryer

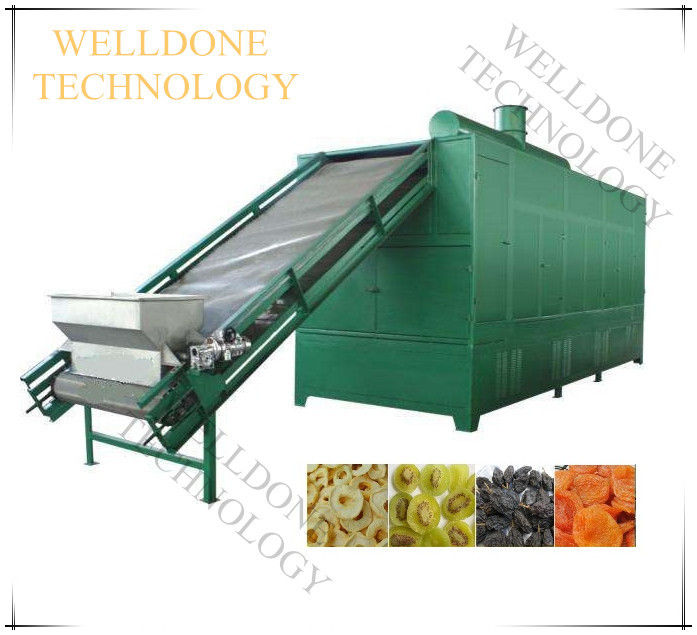

Description of Candied Fruit / Preserved Fruit / Confect Belt Dryer

Raw materials are uniformly fed on the mesh-belt / plate belt by distributor. The mesh-belt / plate belt is drawn and moved inside the dryer by a driving device. The dryer is consisted of several independent drying sections. Hot air circulated separately and independently in each section. Part of damp air will be exhausted by exhausting fan. Hot air penetrates the belt from top to bottom or from bottom to top, and this will complete the heat and mass transfer process. Moving speed of belt is adjustable. The top and bottom circulation units can be freely equipped according to customer's requirement.

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 0





Features of Candied Fruit / Preserved Fruit / Confect Belt Dryer

◆◆ Different heating and circulation method is available for choice.

◆◆ Length , width and layer quantity of belt is designed based on production requirement.

◆◆ The machine pre-dehydration process could remove massive moisture on leaf surface, thus reduced the drying strength, and reduced the energy consumption.

◆◆ Special hot air drying system, increase material penetrability and drying rate.

◆◆ The adjustment of belt speed and the different section temperature control, it guaranteed the drying time and material quality and color.

◆◆ Strong magnetism iron removal device is available for choice, it could remove metal impurities effectively.





Application of Candied Fruit / Preserved Fruit / Confect Belt Dryer

◆DWF belt dryer is continuous-production drying equipment. The dryer being widely used for drying the piece, strip and particle shape materials in good ventilation. The dryer is suitable for de-watering fruit & vegetable which the moisture content is high and high drying temperature is not allowed. Drying speed of belt dryer is fast, evaporation strength is high and the product quality is good.
◆DWF belt dryer is widely used and support for drying various kind of material such as pigment, fiber, fruit & vegetable, briquette etc.





Technical Parameters of Candied Fruit / Preserved Fruit / Confect Belt Dryer

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 1



Picture of Belt Dryer in Working

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 2DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 3DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 4DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 5

DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 6DWF Candied Fruit / Preserved Fruit / Confect Belt Dryer (Special Design) 7
